Iridium 9602

Single board transceiver Small form factor SIM-less operation Designed to be incorporated into an OEM solution RoHS compliant Maximum MO message size: 340 bytes Maximum MT message size: 270 bytes

The Iridium 9602 is a SBD unit designed for embedded applications and is ideal for machine-to-machine (M2M) solutions. Mechanical Specs. Length: 41.0 mm Width: 45.0 mm Depth: 13.0 mm Weight: 30.0 g Environmental Specs. Operating Temperature Range: -40ºC to + 85ºC Operating Humidity Range: ≤75% RH Storage Temperature Range: -40ºC to + 85ºC Storage Humidity Range: ≤93% RH RF Parameters Frequency Range: 1616 MHz to 1626.5 MHz Duplexing Method: TDD (Time Domain Duplex) Input/Output Impedance: 50Ω Multiplexing Method: TDMA/FDMA DC Power Input Idle Current (average): 45mA Idle current (peak): 195mA Transmit Current (peak): 1.5A Transmit Current (average): 190mA Receive Current (peak): 195mA Receive Current (average): 45mA SBD message transfer – average current: 190mA SBD message transfer – average power: ≤1.0W

Iridium 9603

Smallest form factor offering unmatched integration flexibility Single-board transceiver Single header connector for Power, On/off control, logical level asynchronous UART control & Network availability Simple AT command interface SIM-less operation Automatic notification that mobile-terminated messages are queued Maximum MO message size: 340 bytes Maximum MT message size: 270 bytes

The Iridium 9603 is the world’s smallest commercially available two-way satellite data transceiver, designed for applications where space is at a premium and communication is critical. Mechanical Specs. Length: 31.5 mm Width: 29.6 mm Depth: 8.1 mm Weight: 11.4 g Environmental Specs. Operating temperature range: -30ºC to +70ºC Operating humidity range: ≤75% RH Storage temperature range: -40ºC to +85ºC Storage humidity range: ≤93 % RH RF Interface Frequency range: 1616 to 1626.5 MHz Duplexing method: TDD (Time Domain Duplex) Input/output impedance: 50Ω Multiplexing method: TDMA/FDMA VSWR return loss: 1.5:1 In Iridium Band, 3:1 Out of Band DC Power Input Supply input voltage range: 5.0V +/- .2V DC Supply input voltage ripple: < 40mV pp Idle Current (peak): 195mA Idle Current (average): 45mA Transmit Current (peak): 1.5 A Transmit Current (average): 190mA Receive Current (peak): 195mA Receive Current (average): 45mA SBD message transfer - average current: 190mA SBD message transfer - average power: ≤ 1.0 W

Iridium 9522B L-Band Transceiver

26-pin IDC connector for user interfaces RS232 serial interface for data and voice SMA RF antenna connector Enables continuous circuit switched connection Connects to small omni-directional L-band antennas GPS feed-through connector for shared antenna Integrated SIM card reader Enhanced AT command support DPL bus for control of external peripherals Voice, SBD, CSD and RUDICS capable Maximum MO SBD message size: 1.96 Kbytes Maximum MT SBD message size: 1.89 Kbytes

The 9522B is Iridium’s 2nd-generation satellite transceiver for truly global voice and data communications. The compact, lightweight LBT unit with built-in SIM card reader supports all Iridium-based services, including voice telephony, circuit-switched data, short-burst data (SBD) and short message service (SMS). Mechanical Specs. Length: 162 mm Width: 81 mm Depth: 28 mm Weight : 420 g Environmental Specs. Operating Temp.: –30°C to +70°C Operating humidity: 25 to 75% RH Storage Temp.: –40°C to +85°C Storage humidity: ≤93% RH RF Interface Frequency range: 1616 MHz to 1626.5 MHz Duplexing method: TDD (Time Domain Duplex) Oscillator stability: ± 1.5 ppm Input/output impedance: 50Ω Multiplexing method: TDMA/FDMA DC Power Input Main input voltage – range: +4.0 VCD to +32 VDC Main input voltage – nominal: 5 V, 12 V, 24 V Main input voltage – ripple: < 40mV pp Max current (during call): 2.5 A @ 5 V Power average (during call): 4W

Iridium Core 9523

Pole-to-pole global coverage Ultra compact form factor Single-board transceiver Standardized connectors Voice, SBD, CSD and RUDICS capable Direct PCB integration Maximum MO SBD message size: 1.96 KB Maximum MT SBD message size: 1.89 KB

Iridium Core 9523 is Iridium’s smallest, lightest and most advanced voice and data satellite transceiver module ever. It offers new opportunities to integrate Iridium directly on printed circuit boards (PCB). Mechanical Specs. Length: 70.44 mm Width: 36.04 mm Height: - reservoir capacitors: 14.6 mm 　　 - screen can: 8.9 mm Weight: 32.00 g Environmental Specs. Operating Temp.: -30ºC to + 70ºC Operating Humidity: ≤ 75% RH Storage Temp.: -40ºC to + 85ºC Storage Humidity: ≤ 93 % RH RF Parameters Frequency Range: 1616 MHz to 1626.5 MHz Duplexing Method: TDD (Time Domain Duplex) Input/Output Impedance: 50Ω Multiplexing Method: TDMA/FDMA VBAT Power Input Specs. Nominal Voltage: +3.7 V Voltage Limits: +3.2 V to +6 V Maximal Current: 500 mA VBAT Typical Current at Nominal +3.7 V Standby Current: 70 mA Peak Current during Call: 300 mA Average Current during Call: 110 mA VBOOST Power Input Nominal Voltage: +27 V Absolute Maximal Voltage: +35 V Maximal Recommended Voltage: +32 V Minimal Voltage during Call Transmit Burst: +10.5V Maximal Current: 1 A VBOOST Power Consumption Typical Average Power during Call: 2.3 W Maximal Average Power during Call: 3.1 W

Iridium 9523 Integrator Development Kit

Kit Contents: Iridium Core 9523 Satellite Transceiver Iridium Core 9523 Modem Adapter Board Signal Router Board Example Expansion Adapter Board Power Supply with International Adapters L-Band and GPS Antennas Earbud and Microphone USB Cable Carrying Case Software Development Kit on USB Stick User Documentation

The Iridium Push-to-Talk Integrator Development Kit allows developers to quickly and easily incorporate the Iridium Push-to-Talk Service into powerful solutions. Configurable Host Control Connect to the modem through the USB interface or the Expansion Port All components of the kit are available for control through either interface Minimalist and Clear Configuration Options Configuration DIP switches for clarity Explicit identification of default configuration and switch effects Investigation-Friendly Design Probe-connection points for engineering tools to all modem interface signals LEDs visually indicate various states of interest Single Micro-USB Connection Eliminates clutter and simplifies interface Allows remote control of GPIO signals Multiple Power Supply Options Single-source operation for convenience Bench-supply option allows separation of modem from supporting circuitry GPS Receiver Included Provides necessary timing information to Iridium modem Enables location-aware host application development Example Expansion Board Demonstrates Expansion Port concept in-use Allows immediate development on Arduino, Beagle Bone, or Energy Micro processors Other Features SIM card holder Digital audio port access

AT1621-142 Aero Antenna

Hermetically sealed to withstand harsh natural and nautical environments Weatherable polymer with white finish

The AT1621-142 Aero Antenna connects to an Iridium modem to deliver exceptional reception performance for permanent in-building or marine applications when no ground plane is available. It works with all Iridium-based voice and data communications devices. The AT1621-142 is optimal for applications where long cable runs are required. The antenna cable connection is inside the antenna and protected from harsh environments. Mechanical Specs. Diameter: 7.6 cm Height: 16.3 cm Weight: 312 g Connector: TNC Female Mount type: 3/4' thread (U-bolt version) Finish: Weatherable Polymer White Operating Temperature: -40°C to +85°C Altitude: 20,000 feet Electrical Specs. Impedance: 50Ω VSWR: < 2.0:1 Frequency: 1616—1626 MHz Polarization: Right hand circular Axial Ratio: 3 dB Max Power Handling: 1 W Radiation Pattern:  0.4 dBic: 0 = 0  1.4 dBic: 0 < Zenith < 45  -0.25 dBic: 75 < Zenith < 82

Iridium Pilot Kit

	The Pilot kit has been engineered and built to perform in the toughest conditions: blazing sun, frigid cold, high winds, etc. Iridium Pilot can handle any weather conditions, anywhere. Powered by the high-speed, high-value Iridium OpenPort broadband service, Iridium Pilot delivers exceptional performance, durability and value at sea, anywhere in the world.

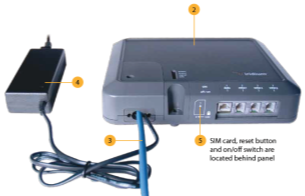

	The Above Decks Equipment (ADE) provides the communication connection between the Below Decks Equipment (BDE) and Iridium’s satellites. The ADE will automatically locate and track Iridium satellites overhead. The Below Decks Equipment (BDE) is the appliance that telephones and computers connect to. It is capable of handling three POTS/RJ11 telephone handsets and one Ethernet data connection. ADE / BDE Cable: The cable connects the ADE to the BDE. It is shielded and has a waterproof connection for the ADE. AC Power Supply Unit: The AC Power Supply Unit (PSU) provides power to the BDE.
Key Benefits: Highly durable Pole-to-pole global coverage High-speed data: up to 134 kbps bidirectional with Iridium OpenPort broadband service 3 independent voice lines Global Service Program (includes 5-year limited warranty) Easy to install	Antenna Specs. Height: 230 mm Diameter: 570 mm Weight: 11 kg Below Decks Unit Specs. Height: 200 mm Width: 250 mm Diameter: 55 mm Weight: 1.35 kg
